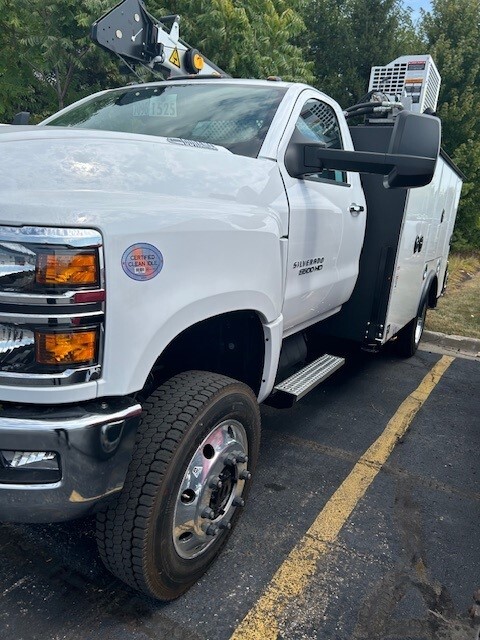

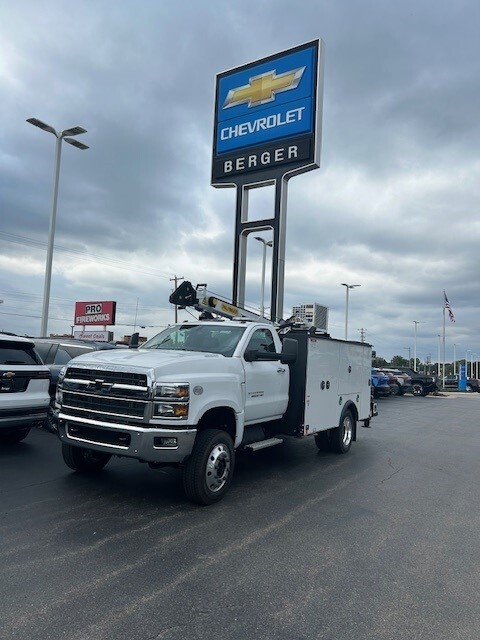

Upfit with PALFINGER

Palfinger Pal Pro 43-11
11' long x 97.5" overall width
60" tall compartments on the roadside and the first two on the curbside
Compartment outside depth is 22".

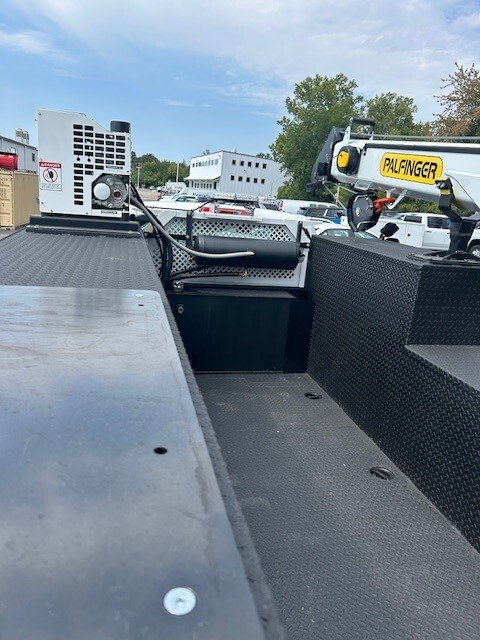

50" wide treadplate cargo area floor.
Eight recessed, swiveling cargo tie downs in floor.
12 gauge, tread plate top on side packs with integrated full length drip rail over the doors.
Doors constructed of high strength 5052-H32 aluminum.
14” single handed slam operating type rear tailgate.

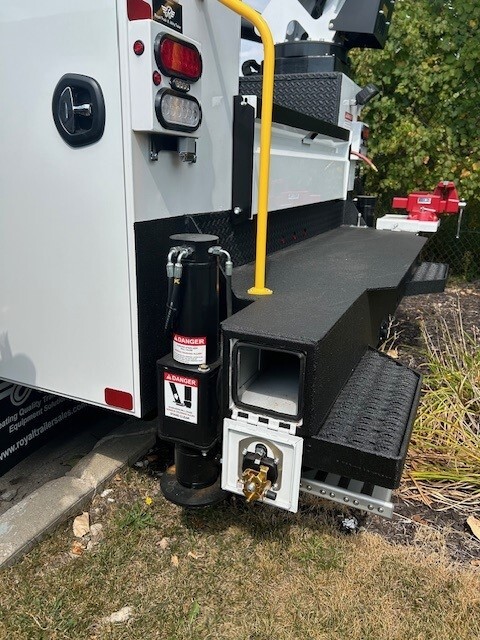

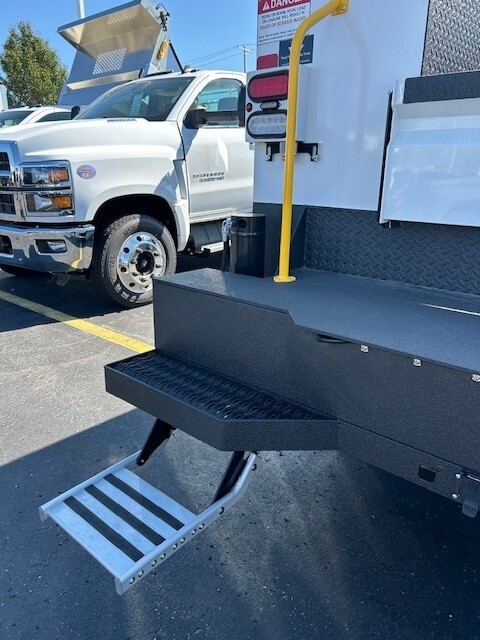

21” deep rear work bench bumper, with full through compartment.

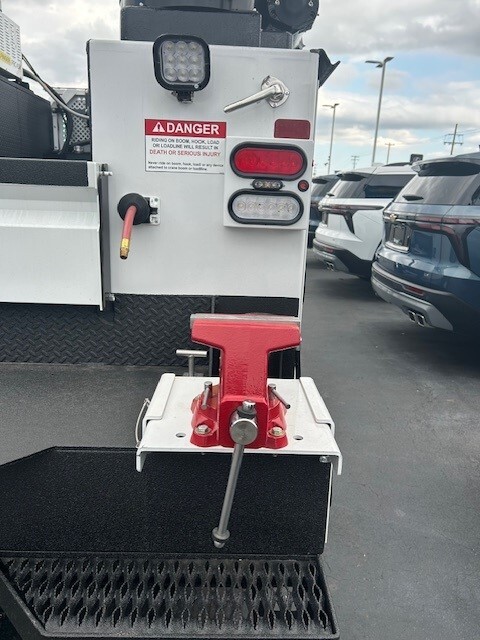

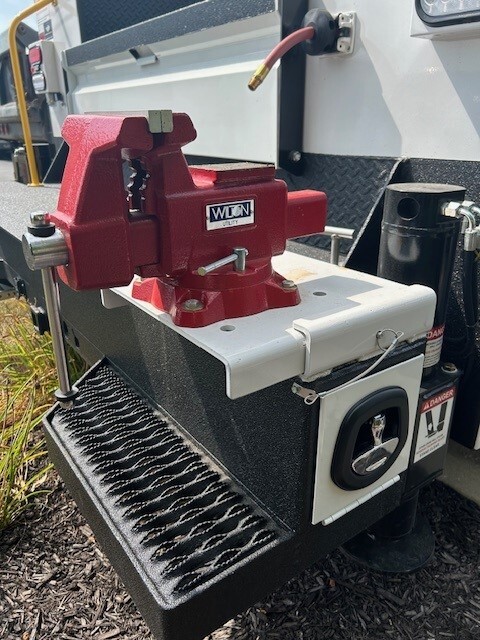

Removable vise mounting bracket on the right rear corner

Master locking system.
Drivers side compartments configured as follows:
1st vertical compartment.
1 adjustable shelf.

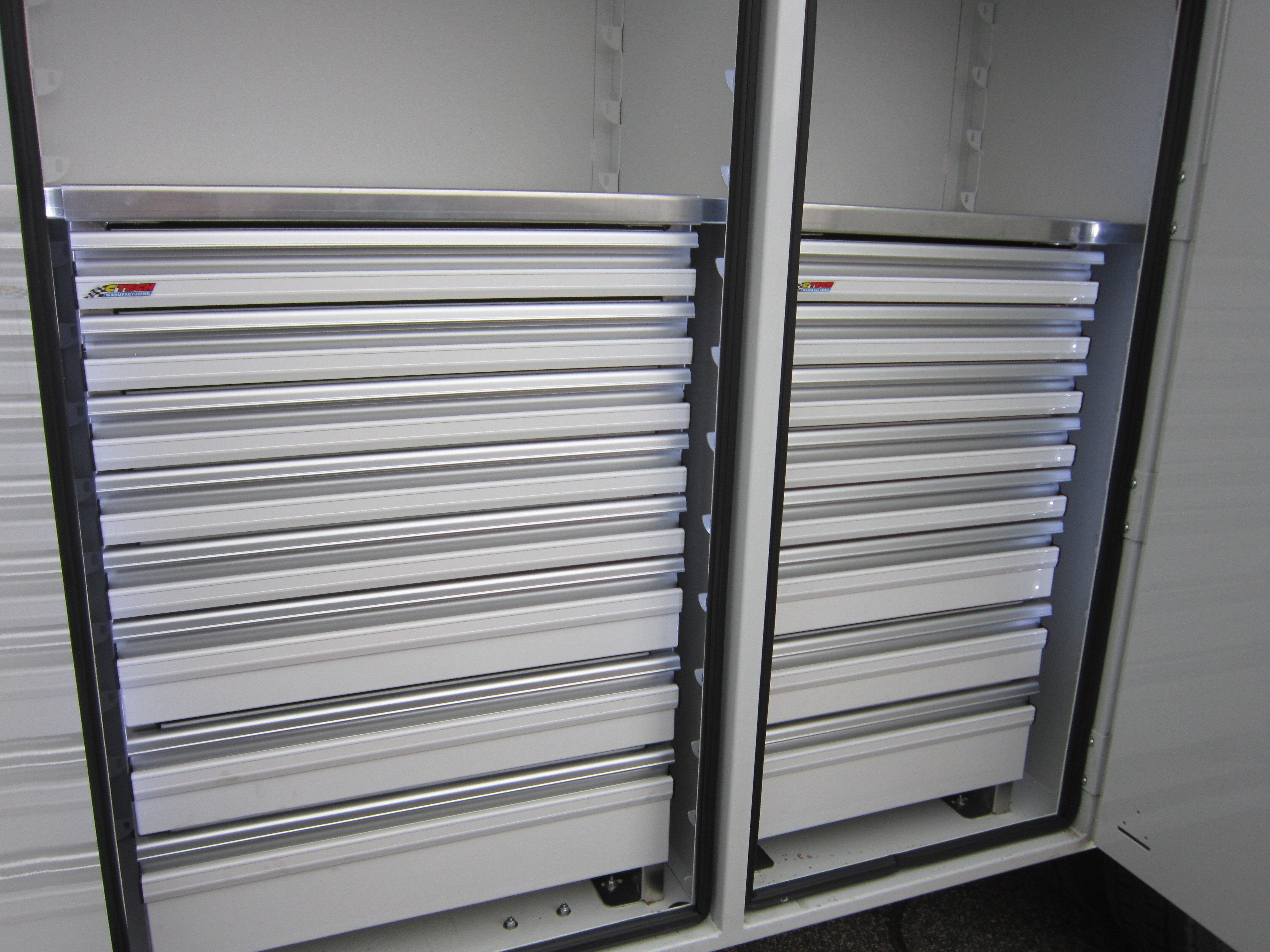

Heavy duty 250 lb. capacity C tech aluminum tool drawers with ball bearing roller slides.
5) 3” drawers in the street side front compartment. (Top of the stack )
2) 5” drawers in the street side front compartment. ( Middle of the stack )
1) 7” drawer in the street side front compartment. ( Bottom of the stack )
2nd vertical compartment.
1 adjustable shelf.
Heavy duty 250 lb. capacity, C tech aluminum tool drawers with ball bearing roller slides.
5) 3” drawers in the street side front compartment. (Top of the stack )
2) 5” drawers in the street side front compartment. ( Middle of the stack )
1) 7” drawer in the street side front compartment. ( Bottom of the stack )
Horizontal compartment

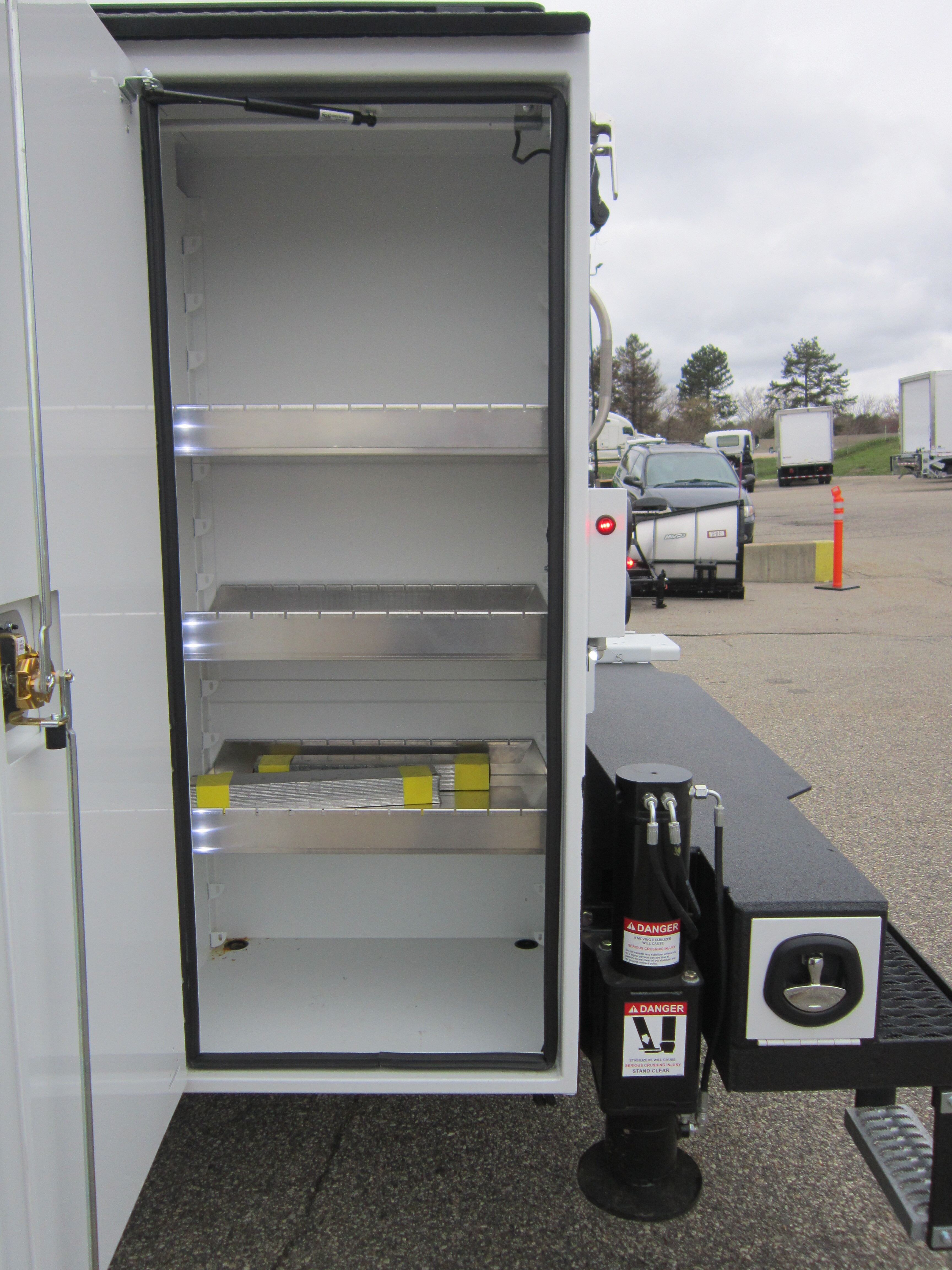

Rear Vertical compartment.
3) adjustable shelves.
Passengers side compartments

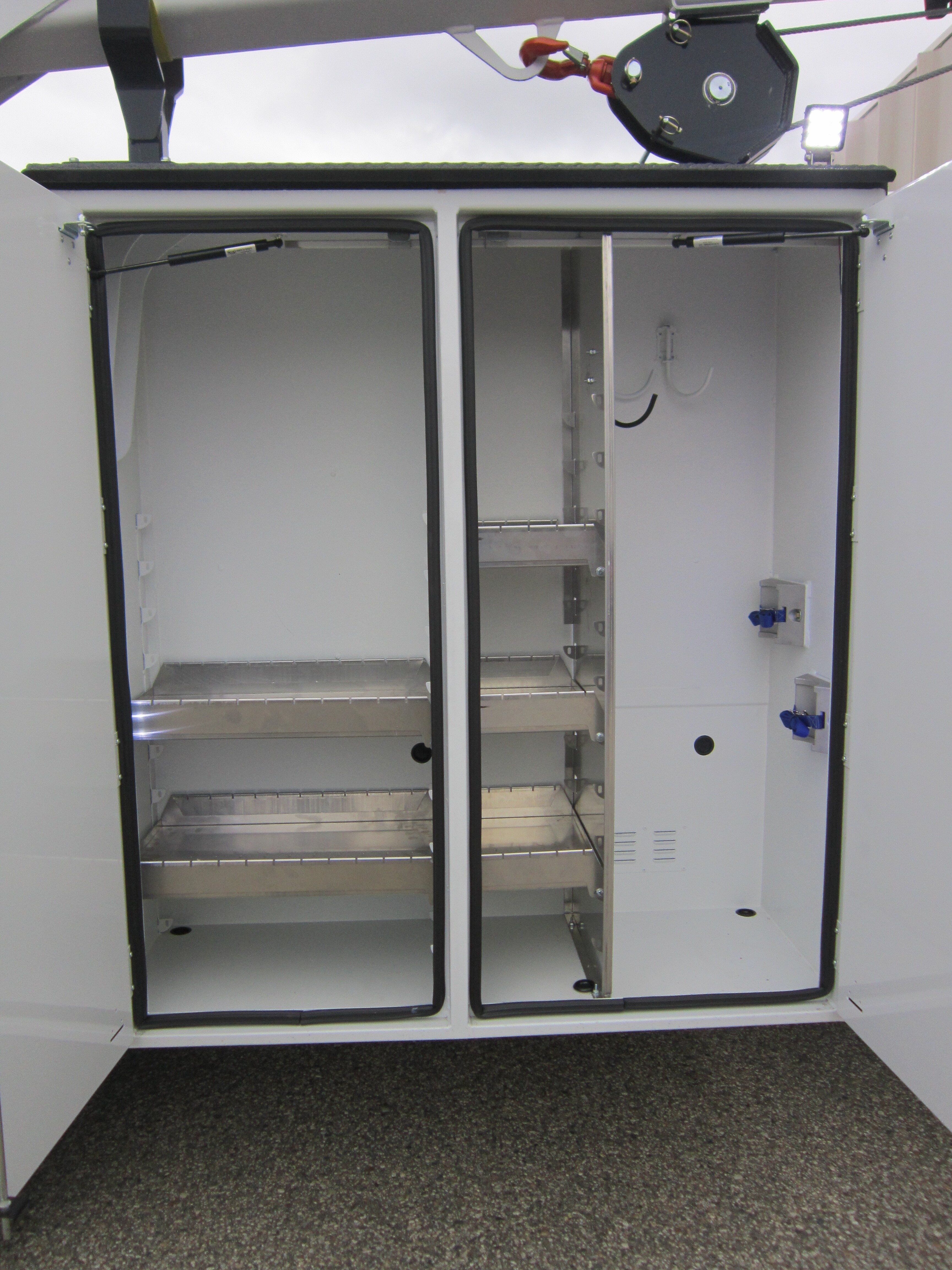

1st vertical compartment.
Oxygen and Acetylene torch tank brackets in the front of the compartment.
3) adjustable shelves rearward of the partition.
Vertical partition with 3 swivel hook in the rear of the compartment.

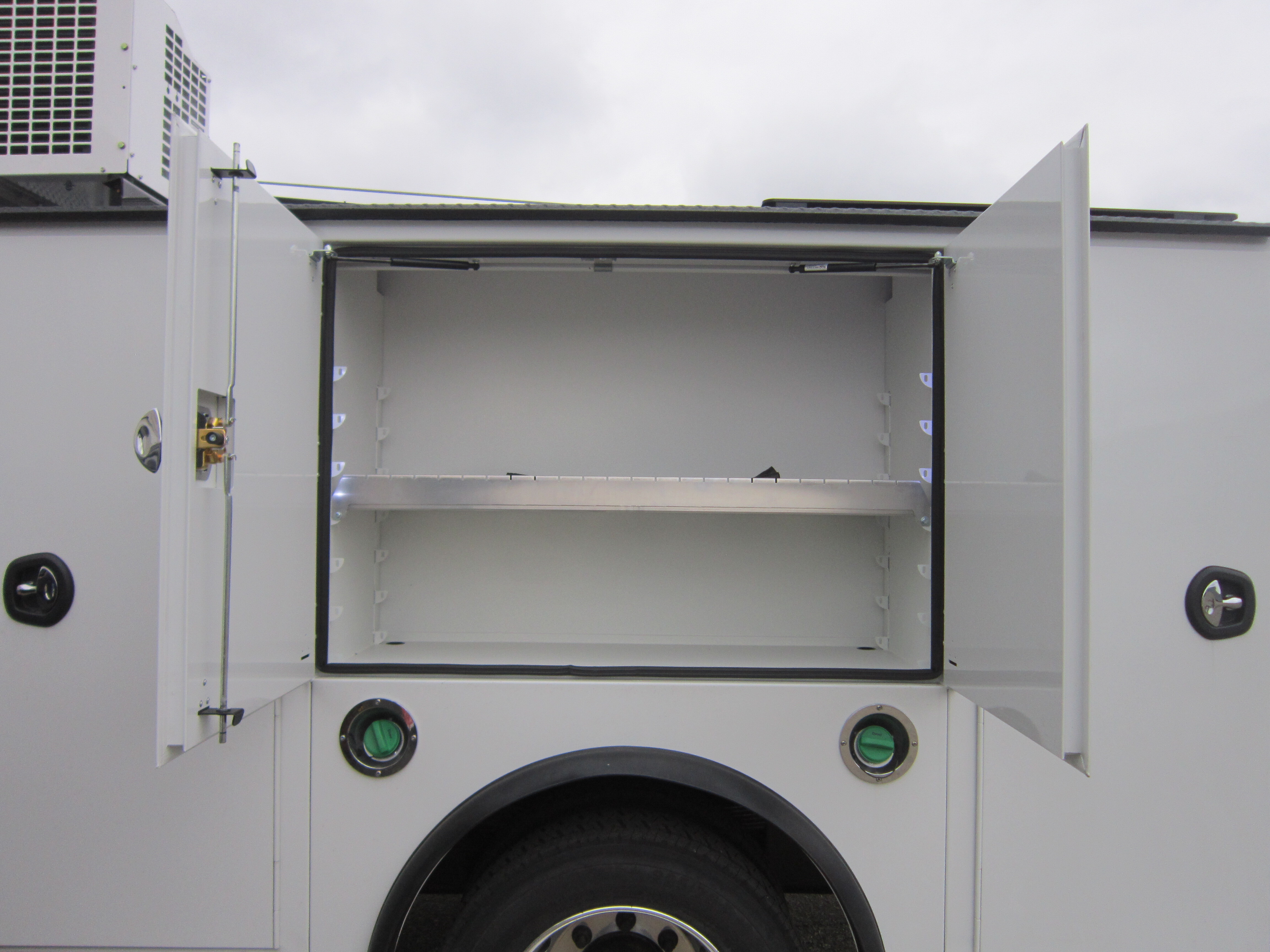

2nd vertical compartment.
3) adjustable shelves.

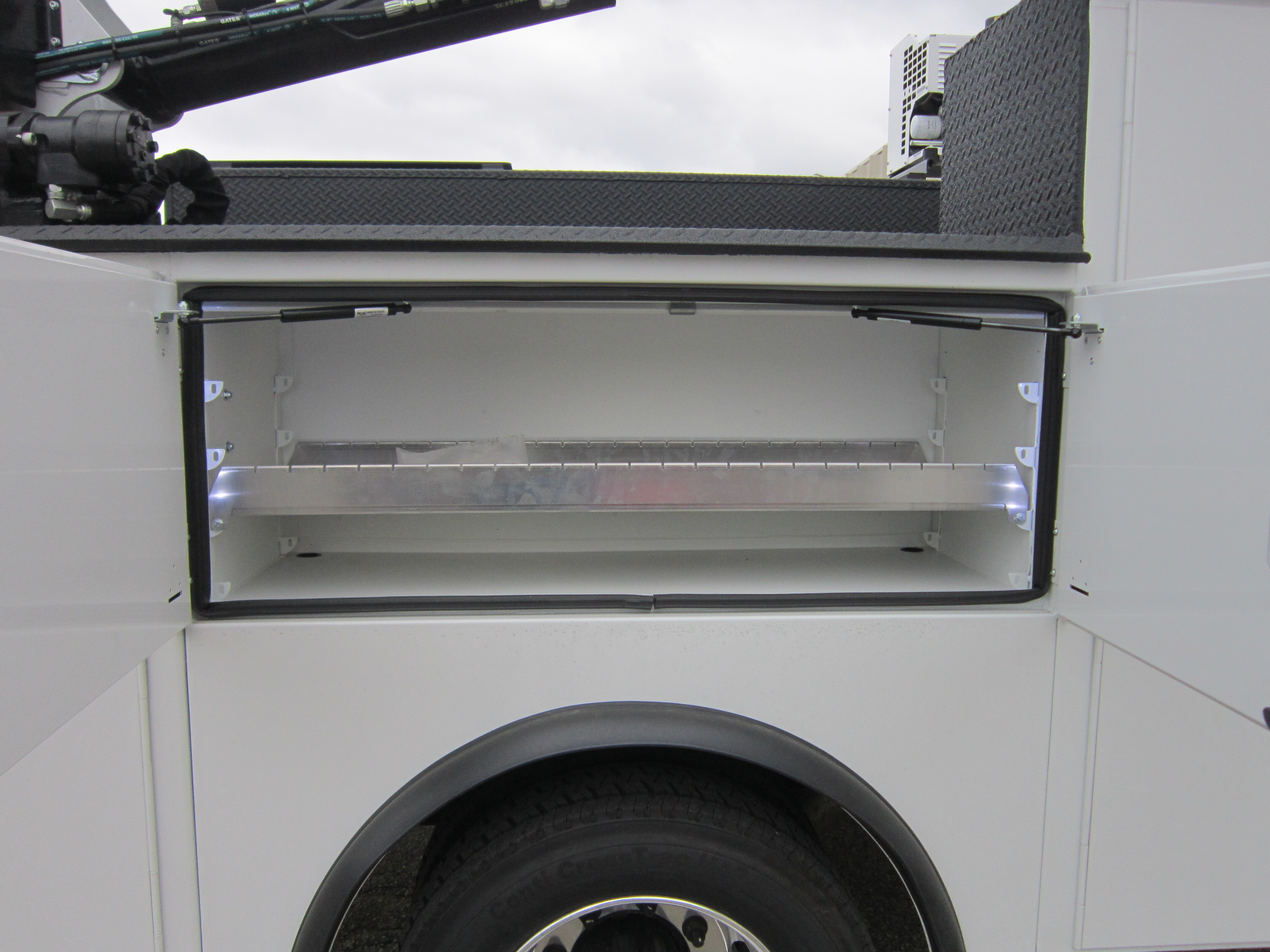

Horizontal compartment.
1) adjustable shelf with divider slots and 4 dividers.
Rear Vertical compartment.

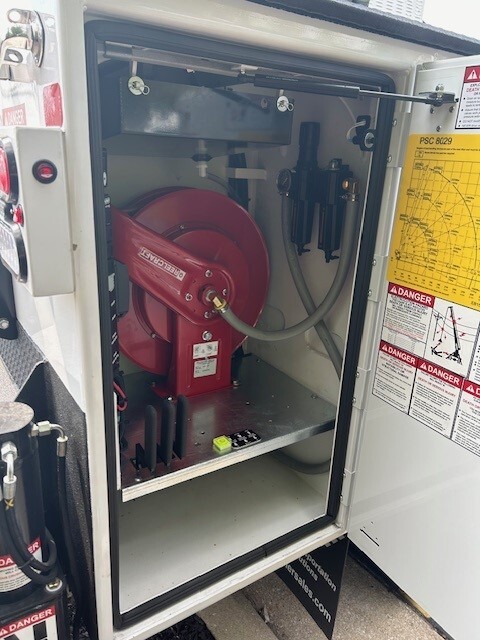

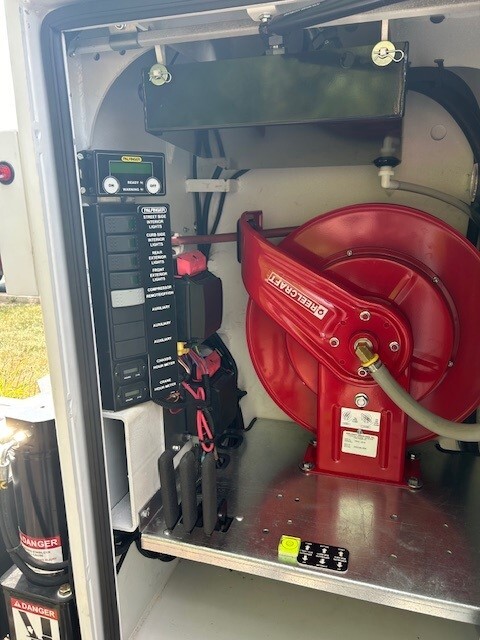

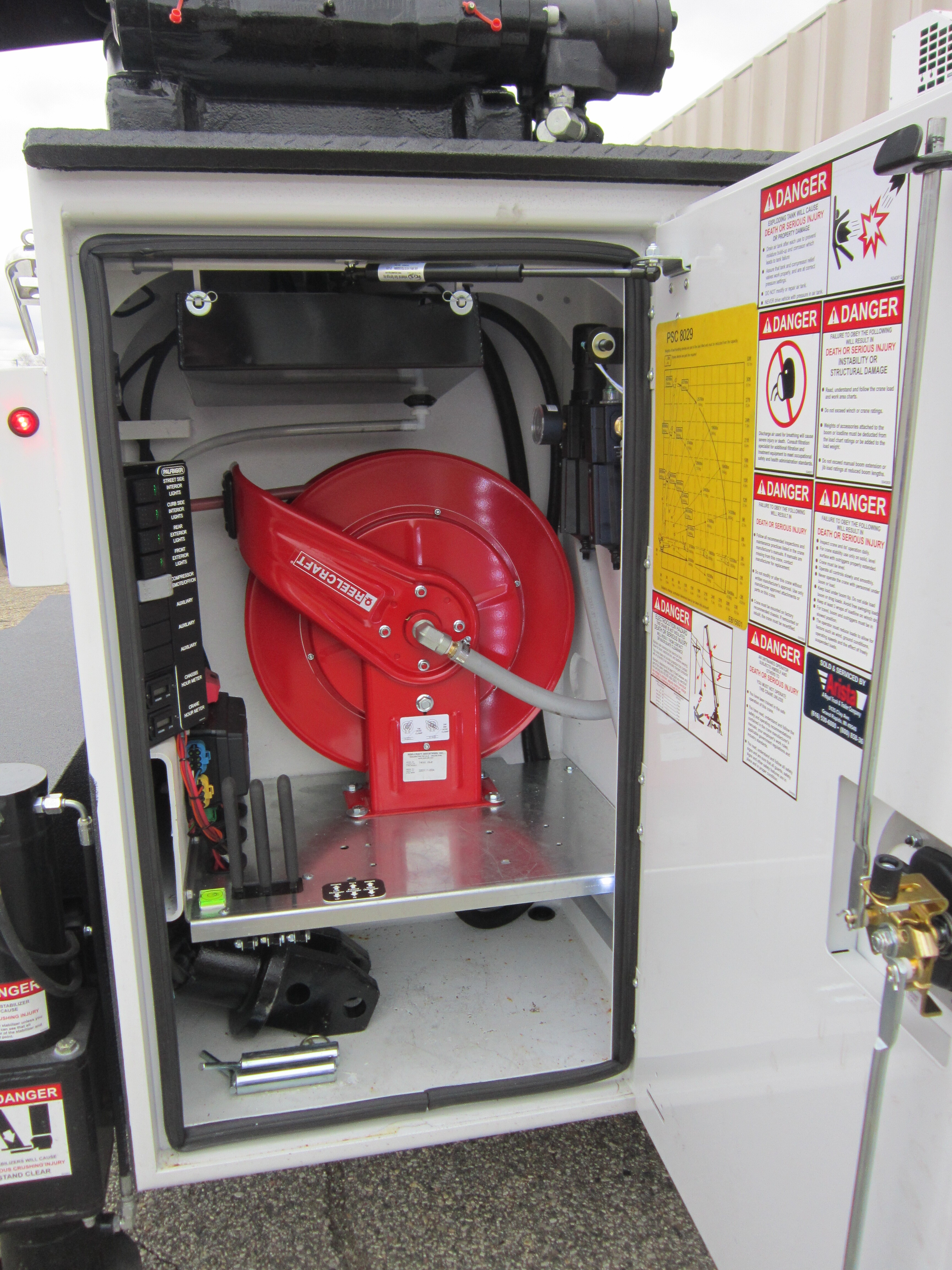

1/2” x 50’ hose reel in right rear compartment.

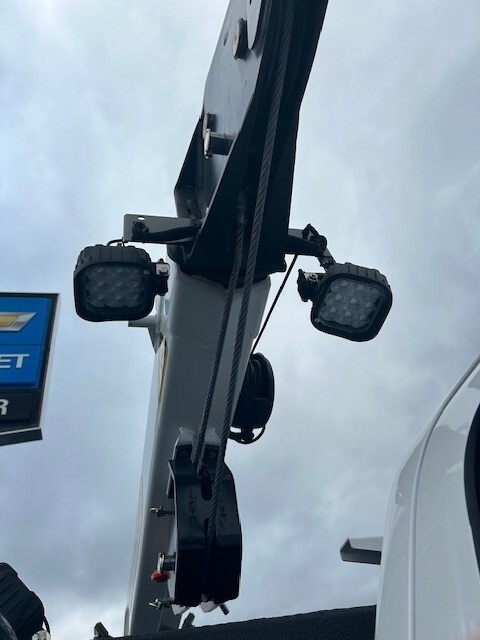

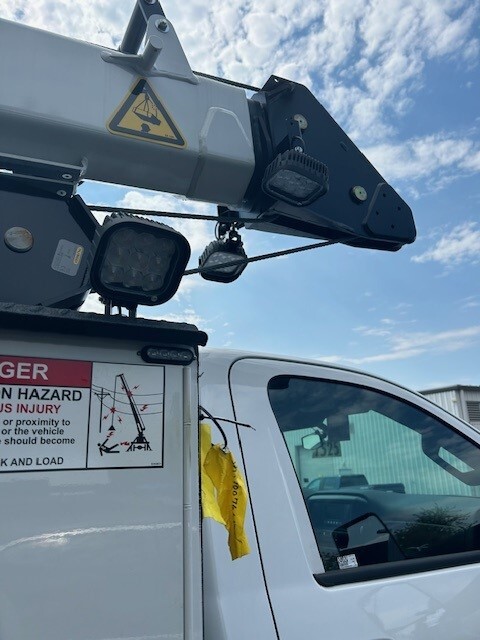

Pal Pro 8029 industrial field service crane
Palfinger crane mounting plate.
43,000 ft. lb. rating.
29' hydraulic reach from centerline of rotation.
8,000 lbs. capacity @ 3' reach. / 1,220 lbs. capacity @ 29' reach.
400 degree rotation.
 Single line capacity 3,000 lbs. / double line 6,000 lbs.
Palfinger PRC 45V Rotary air compressor.
Oil flooded rotary screw compressor. 46 cfm @ 150 PSI. delivery on demand air
