Tanks

• (1) Redesigned 1,000-gal (3,785.41-L) rounded fuel tank
• (1) 120-gal (454.25-L) used oil/waste oil tank
• (1) 120-gal (454.25-L) fresh oil and fluid tank
• (3) 60-gal (227.13-L) fresh oil and fluid tanks
• (1) 60-gal (227.13-L) fresh coolant/antifreeze tank

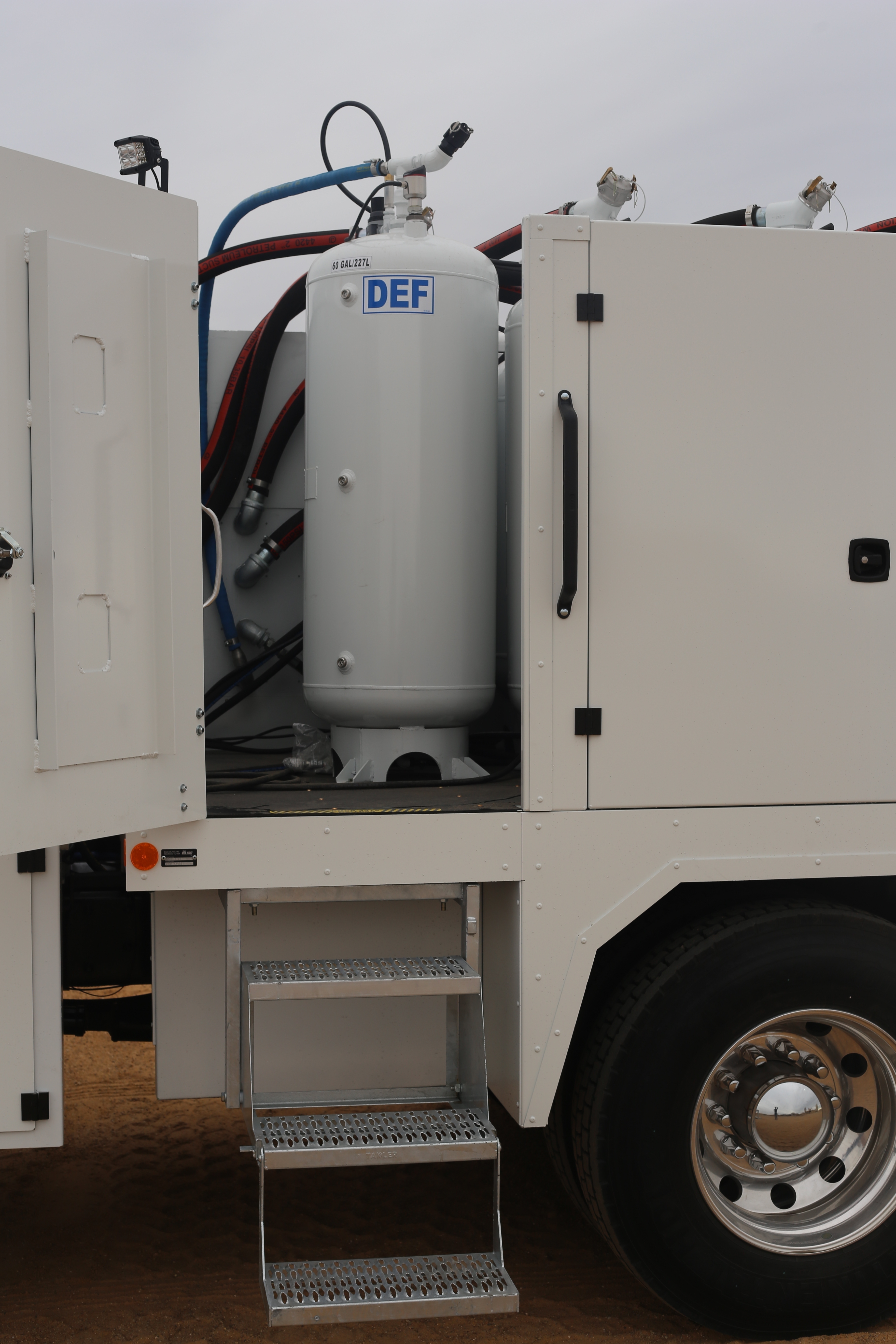

• (1) 60-gal (227.13-L) stainless steel DEF tank
• (1) 120-lb (54-kg) grease keg holder with 50:1 Alemite piston pump

Power

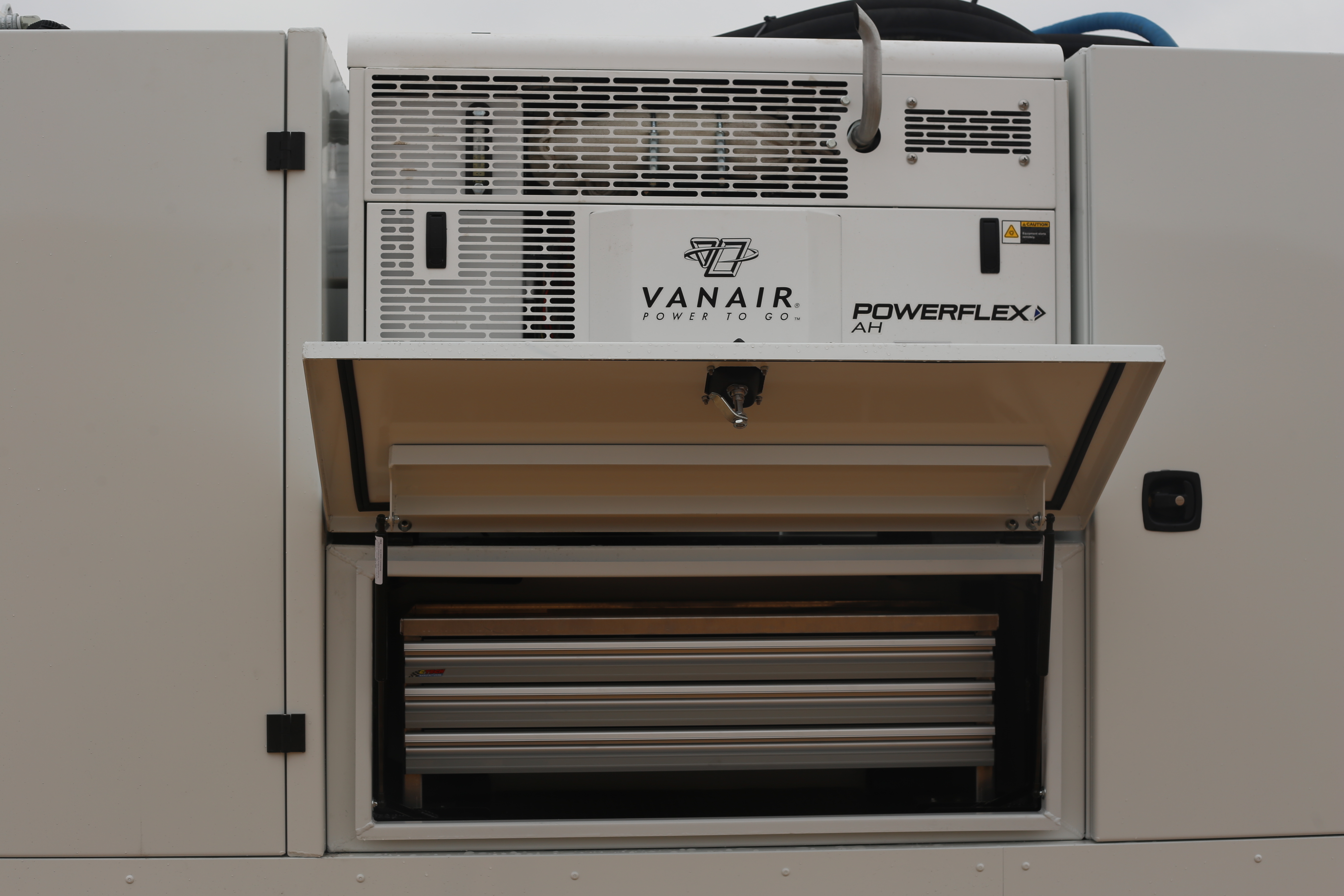

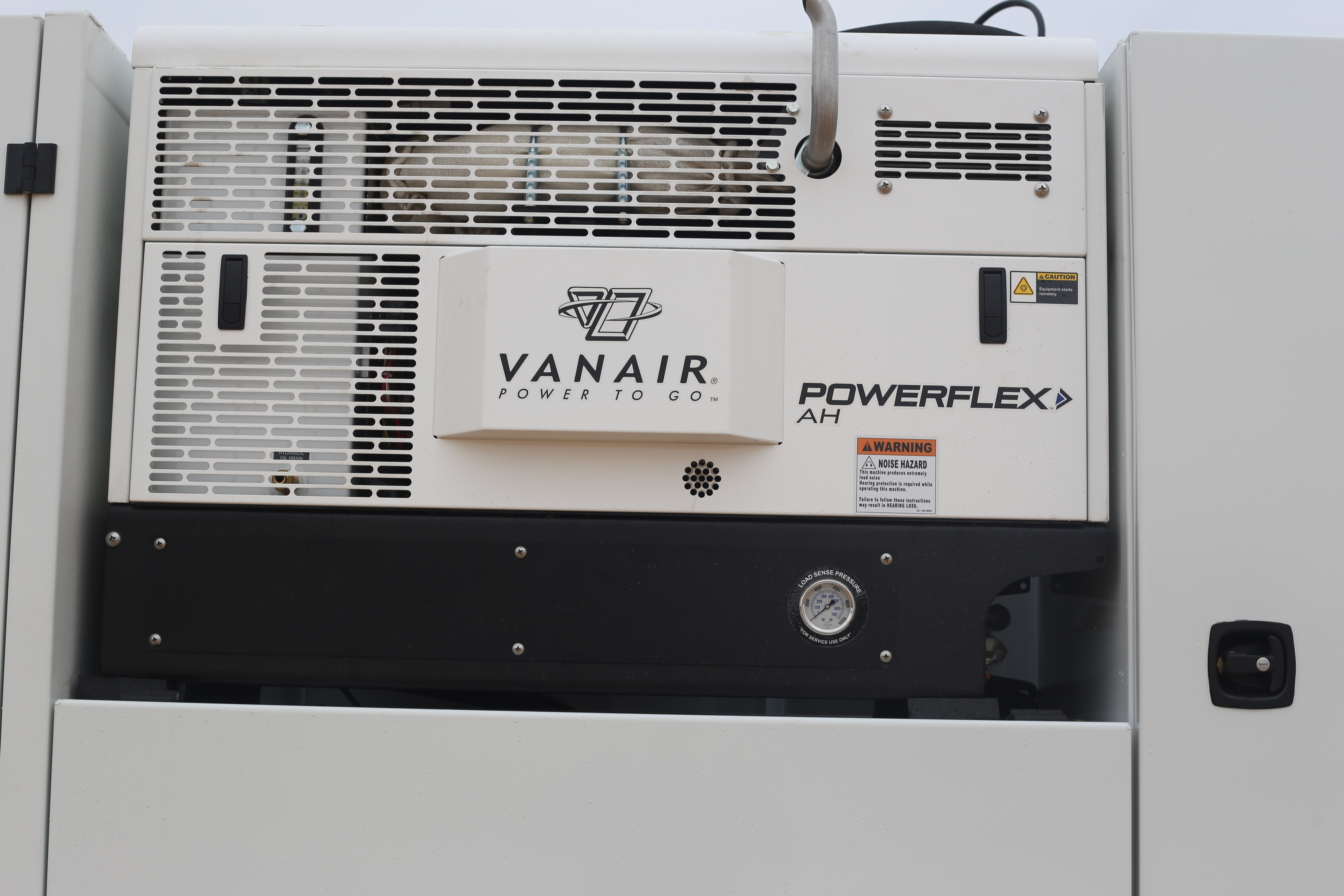

• Standalone diesel-driven rotary screw compressor (40 cfm at up to 150 psi) and hydraulic system (13 gpm and up to 3,000 psi)
• CV-30 vacuum generator for vacuum assist
• Blackmer TX 1.5 pump for diesel fuel delivery
• Coupled with dual filter filtration
• Pumpless DEF tank

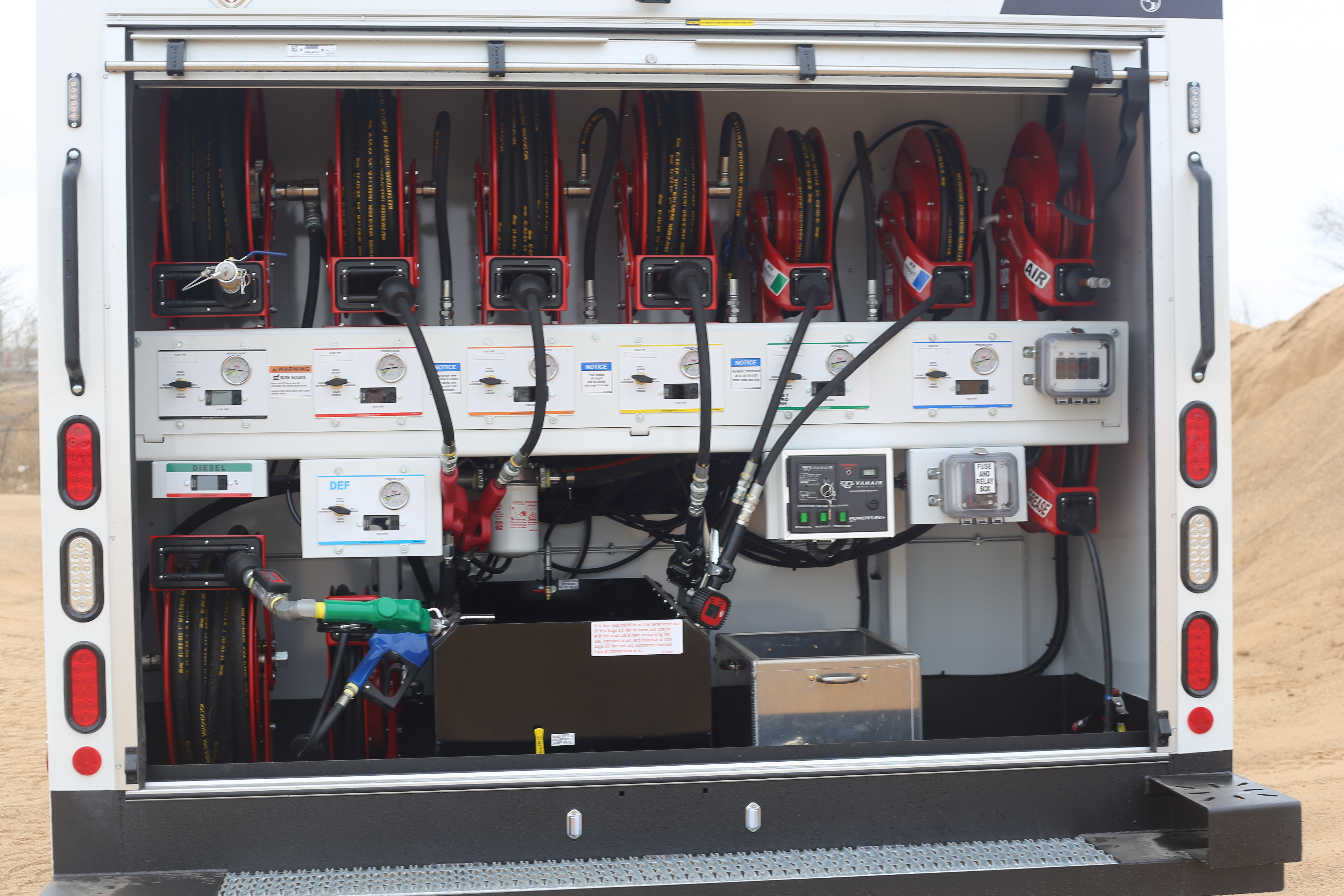

Hoses and Reels

• (1) 1-in x 50-ft (2.54-cm x 15.2-m) diesel delivery hose on spring retractable reel
• (1) 1-in x 50-ft (2.54-cm x 15.2-m) used oil hose on spring retractable reel
• (3) 3/4-in x 50-ft (1.91-cm x 15.2-m) fresh oil hoses on spring retractable reel
• (1) 5/8-in x 50-ft (1.59-cm x 15.2-m) fresh oil hose on spring retractable reel
• (1) 5/8-in x 50-ft (1.59-cm x 15.2-m) fresh coolant/antifreeze hose on spring retractable reel
• (1) 5/8-in x 50-ft (1.59-cm x 15.2-m) DEF hose on spring retractable reel
• (1) 1/2-in x 50-ft (1.27-cm x 15.2-m) air hose on spring retractable reel
• (1) 3/8-in x 50-ft (0.95-cm x 15.2-m) grease hose on spring retractable reel
• 1-in x 20-ft (2.54-cm x 7.6-m) used oil offload hose (priced separately)

Sage Oil Vac Attributes

• Exclusive vacuum process to load fresh fluid tanks (barrel straws priced separate — specify quantity and length)
• Patented Used Filter Receptacle (UFR)
• Patented Filter Stinger
• 10-micron filters on all fresh oil products
• All tank and compressor controls are remoted to the truck’s reel cabinet
• Curbside bulk fill station for rapid filling of new product to tanks
• All tanks are fitted with a float and pressure gauge that is displayed on the remote panel, informing the user of vacuum/pressure levels captured in the tank, as well as the fluid level

Hose Ends, Meters, Handles

• (1) Used oil hose 1-in (2.54-cm) cam and groove fitting
• Fresh fluid hoses 1/2-in (1.27-cm) flush face quick disconnects
• (1) In-line fuel meter for diesel
• (1) Diesel dispensing nozzle on diesel reels
• (1) DEF dispensing nozzle on DEF reels
• Meters plumbed to delivery side of all new fluid reels

Dimensions and weights

• Width: 101 in (2.56 m)
• Length: 27.3 ft (8.32 m
• Empty weight with chassis: approx. 21,960 lb (9,960.89 kg)
• Max operating weight: approx. 32,500 lb (14,741.75 kg)
